1.Thermal honeycomb principle
2.Modular, pluggable technology
3.Protection grade IP65
4.Lens optional
5.Optional ring installation, fixed installation bracket
Application place:
Lighting of large warehouses, high sheds, billboards, highways, railways, subways, tunnels and other underground passages.
Thermal honeycomb principle
Modular, pluggable technology
Protection grade IP65
Lens optional
Optional ring installation, bracket fixed installation
The internal and external air ducts dissipate heat, and the principle of thermal honeycomb dissipates heat to achieve good heat management. The light source and radiator are perfectly combined,
Effectively spread heat, thereby reducing the temperature of the lamp body, effectively ensuring the life of the light source and power supply
High-quality 3030 lamp beads, high light efficiency, low light decay, lamp bead arrangement design, scientific design of lamp bead arrangement scheme, making the light more uniform and pure
The product adopts waterproof joints and silicone gasket sealing technology, and the protection level reaches IP65, which is suitable for various harsh outdoor environments.
High-quality craftsmanship, high light transmittance, uniform light emission, avoid dazzling and dazzling

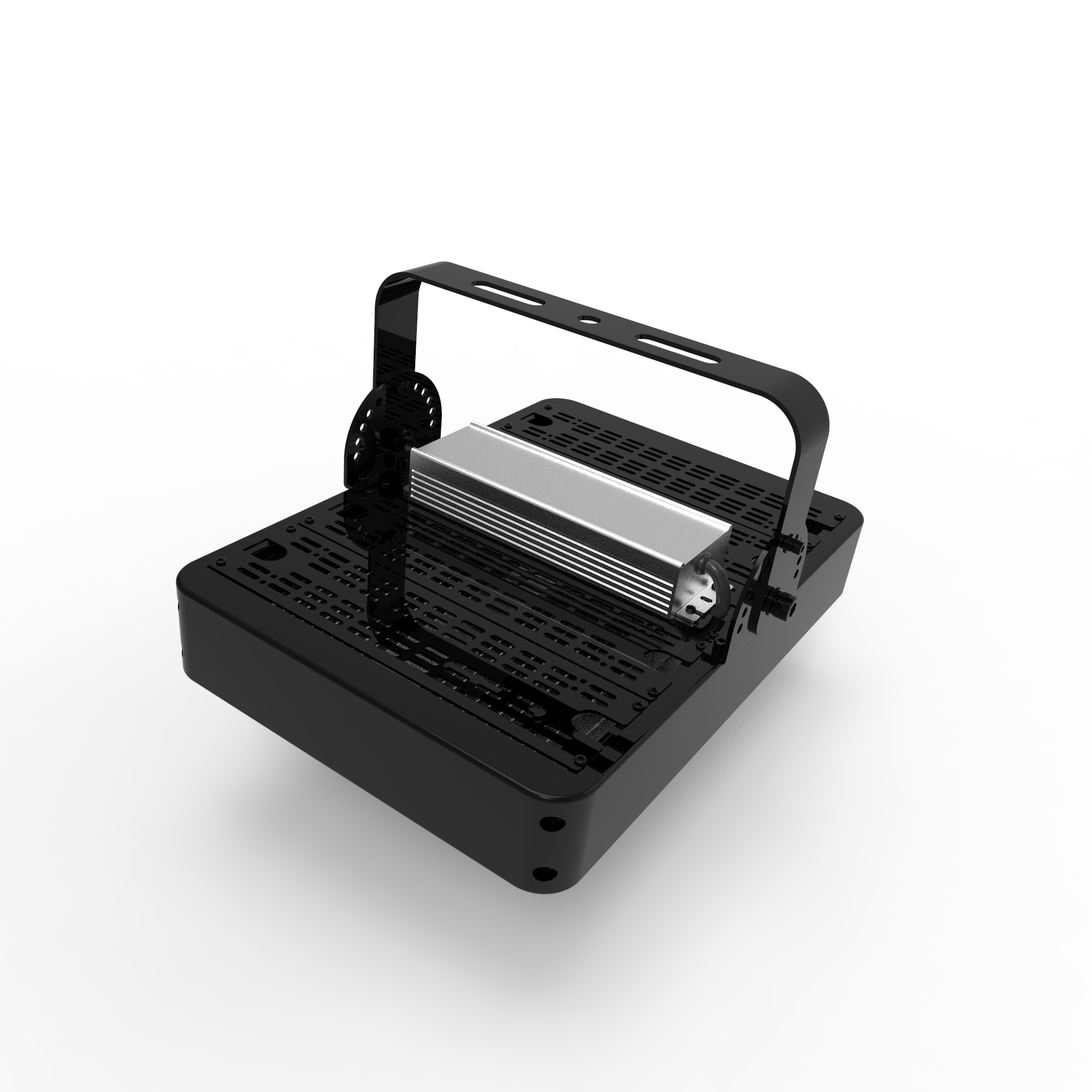

Optional ring installation, bracket fixed installation
Up to 93% efficiency
Waterproof IP67
Lightning protection
Common mode 10kV, differential mode 6kV
Comprehensive protection
Short circuit, over temperature, over voltage, over power
Lighting of large warehouses, high sheds, billboards, highways, railways, subways, tunnels and other underground passages
Large warehouse
High shed
billboard
highway
railway
subway
tunnel
| specification | LB-FLOOD/D-V1-50W | LB-FLOOD/D-V1-100W | LB-FLOOD/D-V1-150W | LB-FLOOD/D-V1-200W | LB-FLOOD/D-V1-250W |
| Operating Voltage | AC100-277V | ||||
|---|---|---|---|---|---|
| Power Efficiency | ≥91% | ||||
| Power factor | ≥95% | ||||
| System power consumption | 50±5% | 100±5% | 150±5% | 200±5% | 250±5% |
| Color temperature | 3000-6500K optional | ||||
| Color rendering index | ≥RA80 | ||||
| light source | PHILIPS/OSRAM | ||||
| working environment | -20℃~+50℃，10%~90%RH | ||||
| Storage temperature | -20℃~+50℃ | ||||
| LED life | ≥50000 Hours | ||||
